Raised end load

All kilns

End loaded lumber kiln that is specifically design to be installed to be used as a track kiln. It is designed with very large heating system, extra air flow, and heat recovery is standard. This raised model is placed on a 8ft concrete wall.

Standard components


› fourteen main fans (30in/5HP each)

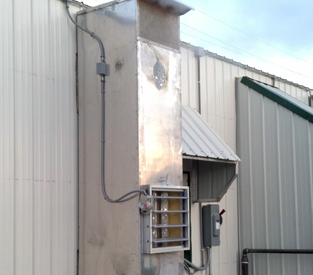

› direct gas heating (two 1850000 btu/hr)
› four power exhaust venting (2HP)
› heat recovery on venting (saves gas)

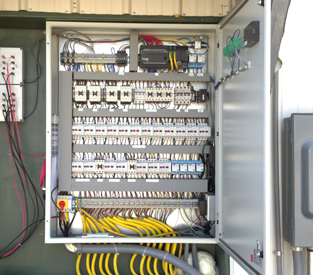

› full featured computerized controls
› wireless communications
› steel construction and outside sheeting
› inside aluminum sheeting

Available upgrades


› stainless steel sheeting inside
› aluminum structure and outside sheeting
› main doors in both ends
› integrated wood moisture meter
› dual controller system for both drying and heat treating lumber
› high pressure misting system
› hot water heating coils
› steam heating coils

Dimensions


› outside length: 56ft
› outside width: 16ft
› outside height: 19ft 6in

› loading width: 55ft
› loading depth: 8ft
› loading height: 16ft 2in

› loading capacity: 30000 bf of 4/4 lumber
