Small standard

All kilns

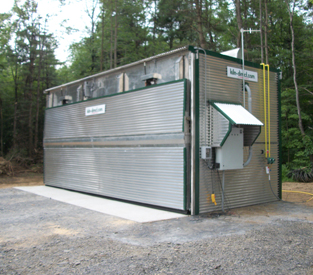

The smallest of the turn-key delivered lumber kilns with a realistic loading capacity of 9000 bf of 4/4 lumber.

Standard components

› five main fans (2HP each)
› direct gas heating (300000 btu/hr)
› inside aluminum sheeting
› two power exhaust venting (2HP)
› heat recovery on venting
› full featured computerized controls
› wireless communications
› all aluminum construction
› inside and outside sheeting is all aluminum

Available upgrades

› stainless steel sheeting inside
› bi-fold main door system
› 850000 btu/hr total output
› total of 9 main fans (2HP each)
› integrated wood moisture meter
› dual controller system for both drying and heat treating lumber
› high pressure misting system
› hot water heating coils
› steam heating coils


› outside width: 28ft
› outside depth: 12ft
› outside height: 12ft 6in

› loading width: 27ft
› loading depth: 8ft
› loading height: 9ft 6in
