High capacity side load

All kilns

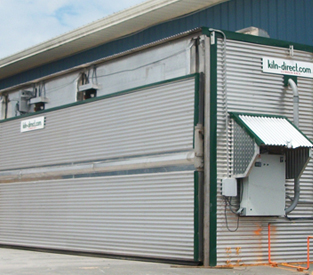

Extra wide & extra deep. This version of the Side Loaded Pallet Kiln (delivered completely assembled) comes standard with heat recovery on the venting and can be upgraded with hot water or steam heating coils. It is used for treating greater volumes of large skids and crates as well as for heat treating lumber.

Standard components

› fourteen main fans (2HP each)
› two direct gas heating unit (1700000 btu/hr)
› inside aluminum sheeting
› triple power exhaust venting (2HP)
› heat recovery on venting
› computerized controls
› redundant wood temp system
› wireless communications
› bi-fold main kiln door

Available upgrades

› stainless steel sheeting inside
› dual heat system controls
› hot water heating coils
› steam heating coils


› outside length: 42ft
› outside width: 16ft
› outside height: 12ft 6in

› loading depth: 12ft
› loading width: 40ft
› loading height: 9ft 2in
