High capacity standard

All kilns

Our most popular kiln for larger pallet companies.

It will accommodate a full truck load of custom size pallet in most cases and why it is very popular with those making new and custom size pallets. Plus it is very well suited to also dry pallets for mold preventions.

Standard components

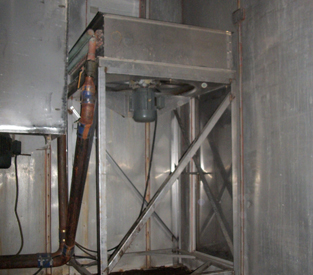

› five main fans (2HP each)

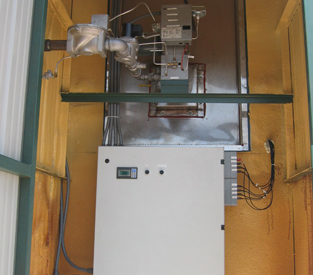

› direct gas heating (1850000 btu/hr)

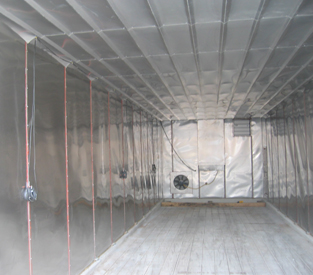

› inside aluminum sheeting
› single power exhaust venting (2HP)
› rear side access door

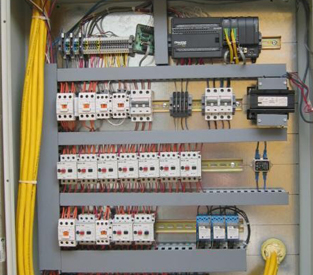

› computerized controls
› redundant wood temp system
› wireless communication of office for record keeping

Available upgrades

› stainless steel sheeting inside
› double power exhaust venting
› heat recovery on vents (saves gas)
› dual heat system controls
› hot water heating coils
› steam heating coils


› outside length: 52ft
› outside width: 14ft
› outside height: 12ft 6in

› loading depth: 42ft
› loading width: 12ft 6in
› loading height: 9ft 2in
