Small deep-wide

All kilns

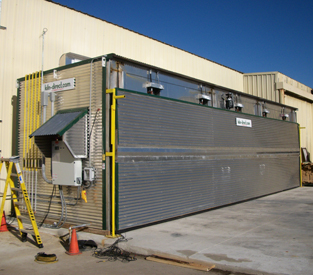

Deep and wide version is the largest of all turn-key lumber kilns made for slower drying hardwoods.

Standard components


› seven main fans (2HP each)
› direct gas heating (600000 btu/hr)
› inside aluminum sheeting
› two power exhaust venting (2HP)
› heat recovery on venting
› full featured computerized controls
› wireless communications
› all aluminum construction.
› inside and outside sheeting is all aluminum

Available upgrades


› stainless steel sheeting inside
› bi-fold main door system
› 1700000 btu/hr total output
› total of 14 main fans (2HP each)
› integrated wood moisture meter
› dual controller system for both drying and heat treating lumber
› high pressure misting system
› hot water heating coils
› steam heating coils

Dimensions


› outside width: 42ft
› outside depth: 16ft
› outside height: 12ft 6in

› loading width: 41ft
› loading depth: 12ft
› loading height: 9ft 6in
