Small deep
All kilns
The deep version of the standard turn-key delivered lumber kilns.
Standard components
› seven main fans (2HP each)
› direct gas heating (600000 btu/hr)
› inside aluminum sheeting
› two power exhaust venting (2HP)
› heat recovery on venting
› full featured computerized controls
› wireless communications
› all aluminum construction
› inside and outside sheeting is all aluminum
Available upgrades
› stainless steel sheeting inside
› bi-fold main door system
› 850000 btu/hr total output
› total of 9 main fans (2HP each)
› integrated wood moisture meter
› dual controller system for both drying and heat treating lumber
› high pressure misting system
› hot water heating coils
› steam heating coils
Dimensions
› outside width: 28ft
› outside depth: 16ft
› outside height: 12ft 6in
› loading width: 27ft
› loading depth: 12ft
› loading height: 9ft 6in
-
Small deep lumber kiln with 13 mbf capacity, gas heat and bifold door upgrade
-
Two small standard lumber kiln with 9 mbf capacity side by side
-
Back side of the kiln with the inlet louver and exhaust hoods on the top, which is part of the heat recovery system integrated into the back wall
-
Inside view of kiln equipment where one baffle is lowered for service, main fan header and gas heating can be seen
-
Computerized control system with dual controller upgrade for both drying and heat treating, plus integrated moisture meter
-
Control cabinet with computerized PLC control, contactors and overloads for motors
-

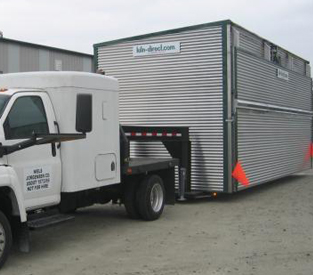

Kiln comes completely assembled to be placed on a concrete foundation
-
Moisture meter pins used by the integrated moisture meter for monitoring drying process and automatic set point update
-

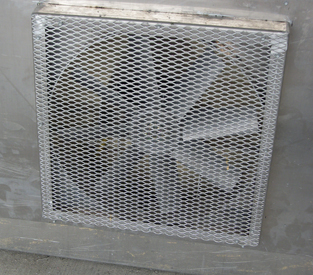

Power venting fan together with heat recovery system
