MiniQuick
All kilns
Our most popular firewood kiln-using the latest technology to reduce drying time and meeting 160F sterilizing temperatures. It can be heated with gas or wood waste and can dry firewood at 260F chamber temperatures. This is the most efficient model.
Standard components
› four main fans (2HP each)
› wood waste heating (600000 btu/hr)
› inside aluminum sheeting
› one power exhaust venting (2HP)
› heat recovery on venting and chimney (save gas when drying)
› full featured computerized controls
› wireless communication of office for record keeping
Available upgrades
› stainless steel sheeting inside
› long wood waste loading conveyor for overnight operation
› direct gas heating instead of wood waste heat.
› high pressure misting system for raising humidity
› hot water heating coils
› steam heating coils
Dimensions
› outside length: 29ft + 20ft
› outside width: 8ft 5in
› outside height: 12ft 6in
› loading length: 22ft
› loading width: 7ft
› loading height: 10ft
-

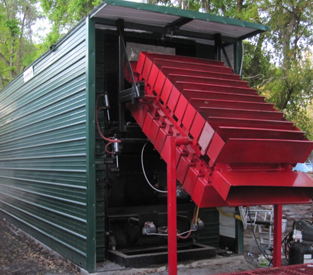

MiniQuick firewood kilns with wood waste heating and conveyor for through the night operation
-
Long 34 bin conveyor for feeding the wood waste heat system with scrap wood needs refilling every 8 to 14 hours
-
12 bin conveyor for feeding the wood waste system with scrap wood needs refilling every 3 to 5 hours
-
Loading kiln with half cord baskets using skid steer / forklift, kiln holds 12 baskets
-
First basket in position during kiln loading
-

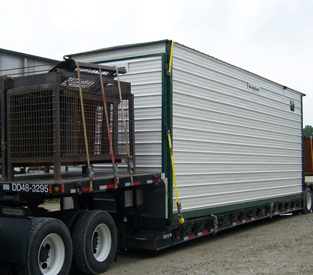

Kiln transportation to a location in one large unit with conveyor and other components inside, one set of assembled baskets can be shipped with kiln without an extra cost plus an en assembled set as well
-
Firebox area with three combustion fans which have speed control for optimal combustion and efficiency
-
Control cabinet with computerized PLC control, contactors and overloads for motors, includes battery back up for the sprinkler system and phone dialer to call your phone in case of emergency
-
Control system includes up to 6 temperature probes for measuring inside firewood temperature to meet USDA treatment regulations
